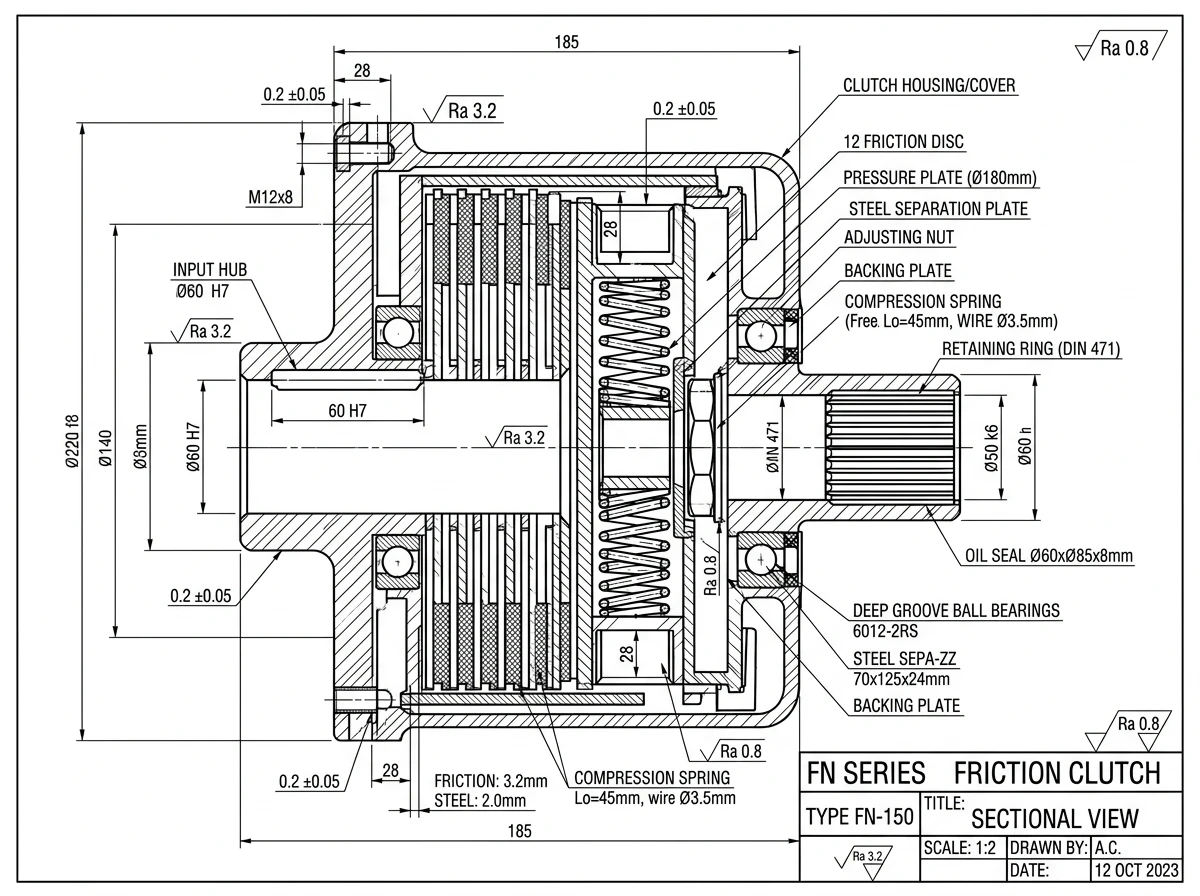

Technical Drawing (FN Series)
TYPE: FRICTION
High-Torque Slip Protection
The FN Series utilizes high-friction discs and adjustable springs for controlled slippage under overload.
| Type Code | FN / FFV friction slip clutch |
|---|---|
| Adjustable Torque | 600 - 2500 Nm (spring-set) |
| Disc Count | 2 / 4 / 8 non-asbestos discs |
| Disc Diameter | Ø160 mm / Ø200 mm |
| Variants | FN (friction), FNV (friction + overrun) |
| Spline / Connection | 1-3/8" Z6 / Z21, 1-3/4" Z20 or plain bore |
| Reset | Automatic / self-resetting after overload |
| Brand Cross-Reference | Comparable to Bondioli & Pavesi / Comer friction clutches |
Ordering & Trade Information
| MOQ | 20 - 50 pcs / model (negotiable) |
|---|---|
| Sample Lead Time | 7 - 12 days |
| Bulk Lead Time | 25 - 35 days after deposit |
| Export Packing | Anti-rust film + export carton, palletised |
Tell us your machine, torque setting and spline — or send a photo of the old clutch — for an exact match.
