Yoke Technical Drawing
Components & Spares
Precision Drivetrain Parts

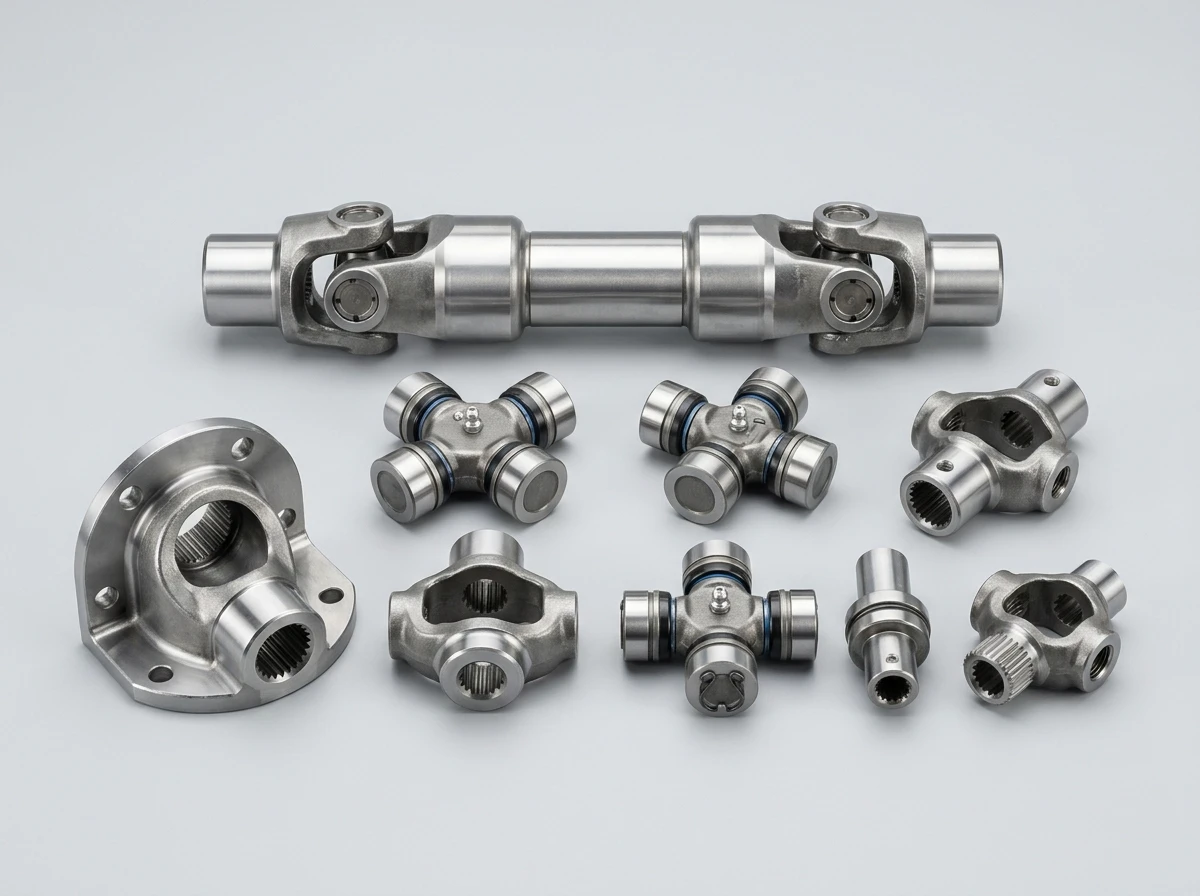

We supply a full range of high-grade alloy steel components. Our universal joints feature heat-treated cross journals and precision needle bearings for maximum load capacity and extended service life.
Cross Journal Size Matrix
| Cross Size (mm) | Series Compatibility |
|---|---|
| 22.0 * 54.0 | T1 Series / Standard |
| 23.8 * 61.3 | T2 Series |
| 27.0 * 74.5 | T4 Series / Medium Duty |
| 30.2 * 92.0 | T6 Series / Heavy Duty |
| 34.9 * 106.0 | T8 Series / Extra Heavy |
Available Yoke Types

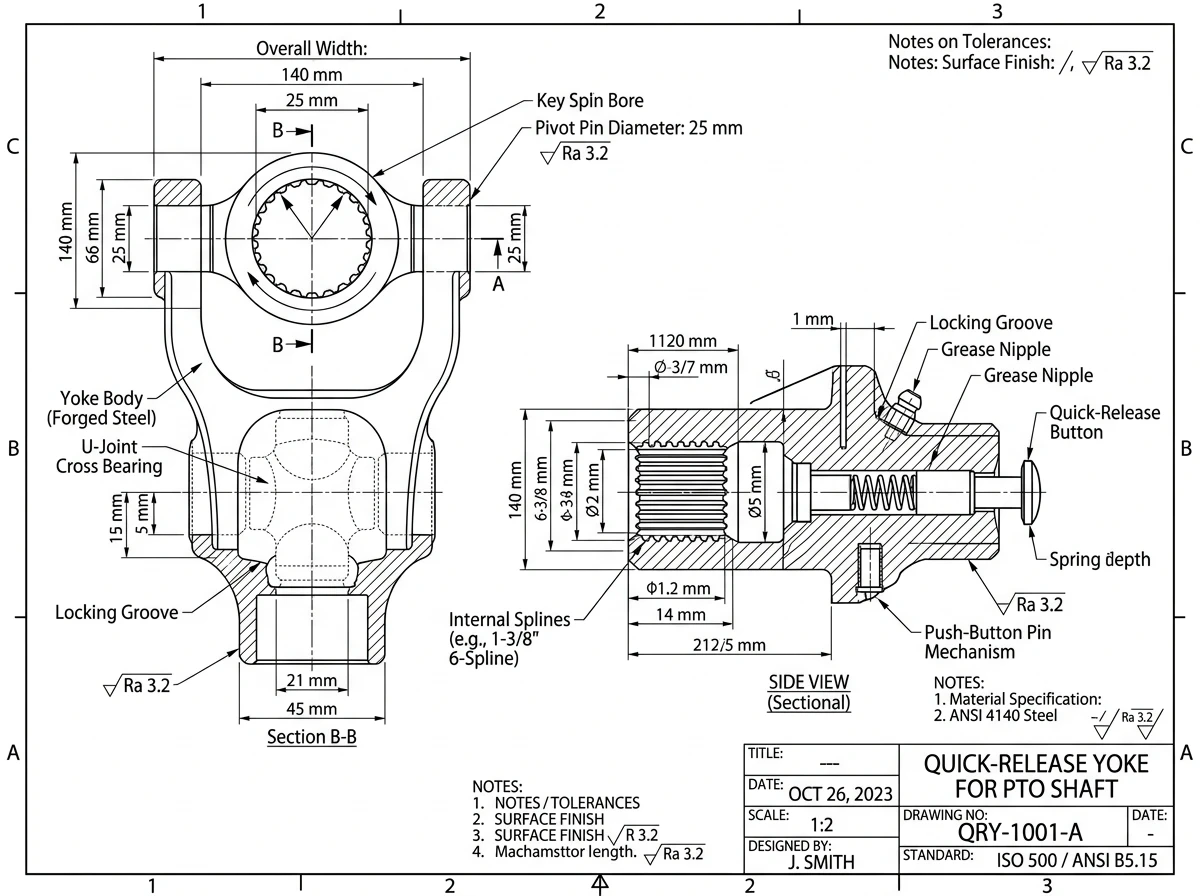

- Quick-Release (Push-pin) Yokes
- Ball Collar Yokes
- Splined & Plain Bore Yokes
- Taper Pin Yokes
