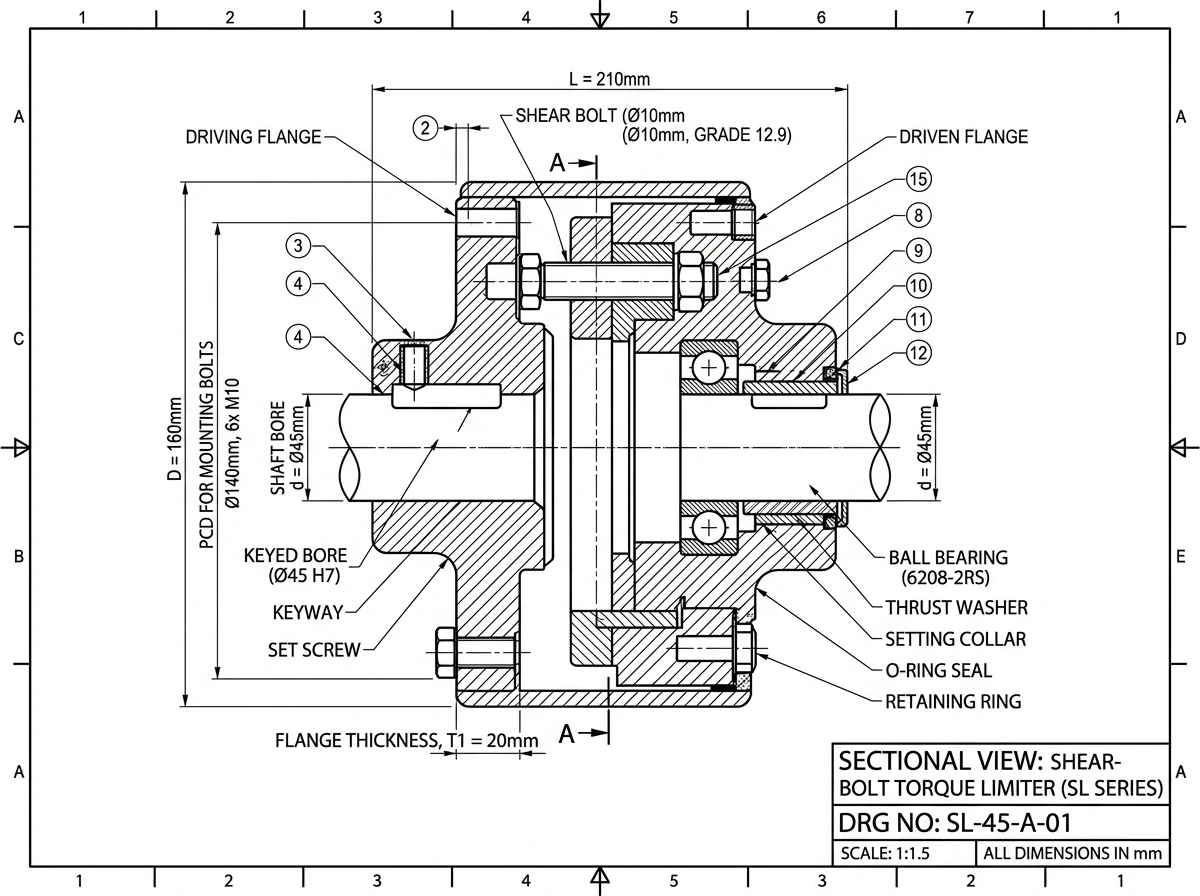

Technical Drawing (SL Series)
TYPE: SHEAR-BOLT
Cost-Effective Protection

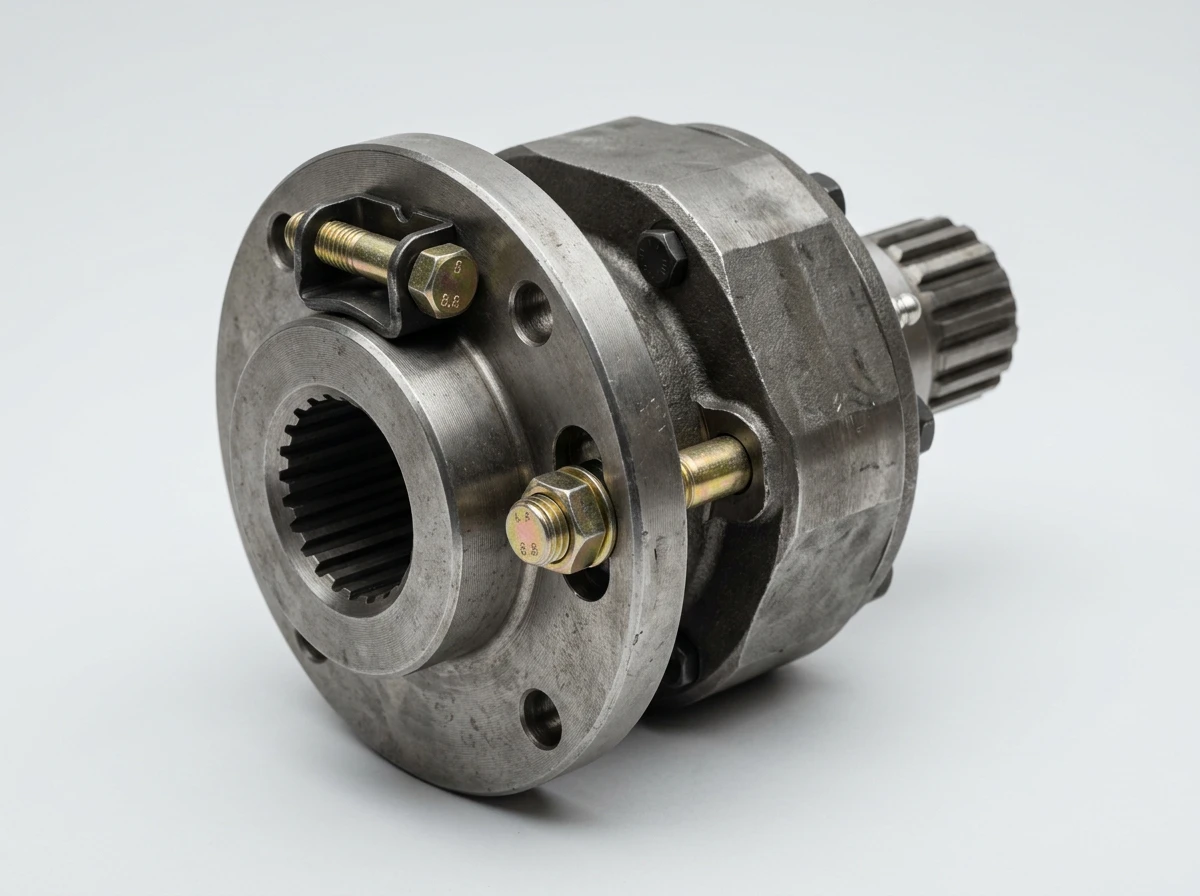

The SL Series is designed for basic yet highly effective drivetrain protection via sacrifical shear bolts.
| Type Code | SL Series shear-bolt limiter |
|---|---|
| Torque Range | 400 - 3000 Nm (preset to spec) |
| Bolt Grade | 8.8 / 10.9 sacrificial shear bolt |
| Hub Material | C45 carbon steel, hardened |
| Spline / Connection | 1-3/8" Z6 / Z21, 1-3/4" Z20 or plain bore |
| Mounting | Yoke-integrated or implement-input flange |
| Reset | Replace shear bolt (low-cost, fast) |
| Brand Cross-Reference | Comparable to Bondioli & Pavesi / Comer shear-bolt clutches |
Ordering & Trade Information
| MOQ | 20 - 50 pcs / model (negotiable) |
|---|---|
| Sample Lead Time | 7 - 12 days |
| Bulk Lead Time | 25 - 35 days after deposit |
| Export Packing | Anti-rust film + export carton, palletised |
Tell us your machine, torque setting and spline — or send a photo of the old clutch — for an exact match.
