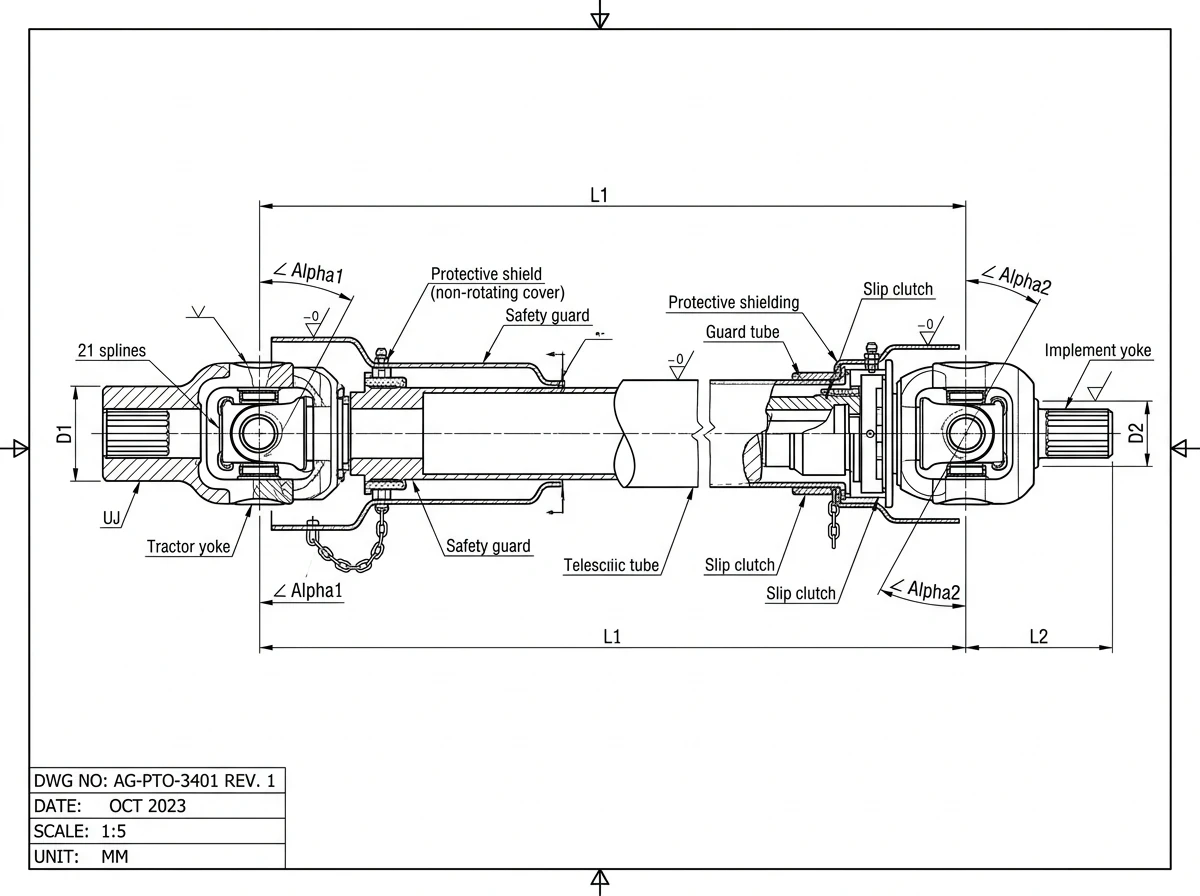

Technical Drawing
Series: T1
Standard Light-Duty Solution
The T1 series is our most popular choice for low-horsepower applications. It features a high-strength universal joint and telescopic tubes, providing reliable performance for tools like finish mowers and small spreaders.
| Power Rating (540 rpm) | 16 HP (12 kW) |
|---|---|
| Dynamic Torque | 210 Nm |
| Cross Journal (kit) | 22.0 x 54.0 mm |
| Tube Profile | Lemon / Triangle profile |
| Closed Length | 510 - 910 mm (made to order) |
| Working Stroke | + up to 60% stroke |
| Tractor-Side Yoke | 1-3/8" Z6 quick-release (push-pin) |
| Implement-Side Yoke | 1-3/8" Z6 plain bore or shear-bolt yoke |
| Standard Lengths | 610 / 810 / 1010 / 1210 mm |
| Safety Guard | CE-approved plastic safety guard (cone + base + bearing) |
Ordering & Trade Information
| MOQ | 50 - 100 pcs / model (negotiable) |
|---|---|
| Sample Lead Time | 7 - 10 days |
| Bulk Lead Time | 25 - 35 days after deposit |
| Export Packing | Anti-rust film + 5-ply export carton, palletised |
| Brand Cross-Reference | Comparable to Bondioli & Pavesi S1, Comer T10, Walterscheid W100E |
| Order Code | EXP-PTO-T1-[length]-[tractor yoke]-[implement yoke] |
Not sure which yoke or length you need? Send a photo of your old shaft via the inquiry form — we will match it exactly.
Typical Applications:
- Small Rotary Cutters
- Fertilizer Spreaders
- Finish Mowers
- Post Hole Diggers
