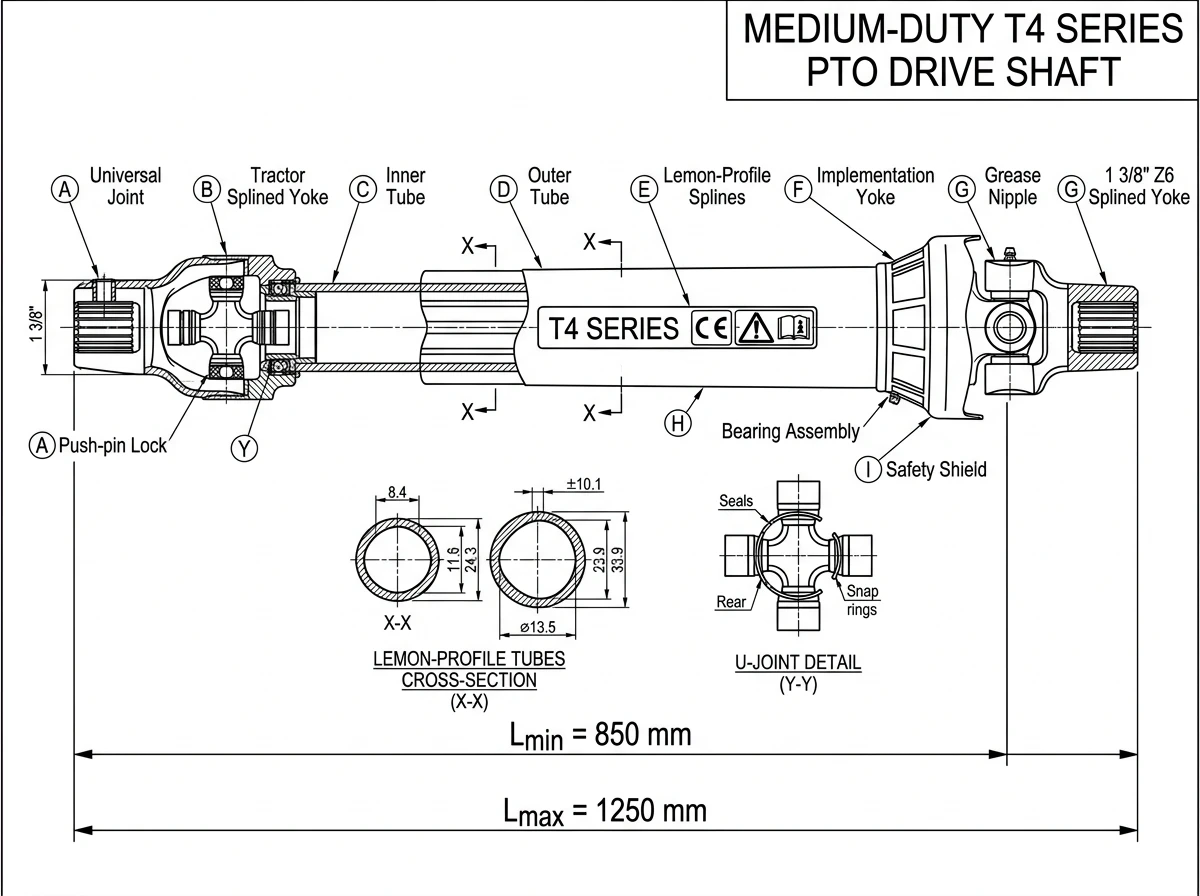

Technical Drawing (T4 Series)
Series: T4
Robust Medium-Duty Performance
Engineered for versatility, the T4 series provides a perfect balance between weight and strength. It is specifically designed to handle the shock loads of rotary cutting and soil preparation.
| Power Rating (540 rpm) | 35 HP (26 kW) |
|---|---|
| Dynamic Torque | 460 Nm |
| Cross Journal (kit) | 27.0 x 74.5 mm |
| Tube Profile | Lemon / Triangle profile |
| Closed Length | 610 - 1110 mm (made to order) |
| Working Stroke | + up to 60% stroke |
| Tractor-Side Yoke | 1-3/8" Z6 / Z21 quick-release |
| Implement-Side Yoke | 1-3/8" Z6 plain bore, shear-bolt or friction yoke |
| Standard Lengths | 810 / 1010 / 1210 / 1410 mm |
| Safety Guard | CE-approved plastic safety guard (cone + base + bearing) |
Ordering & Trade Information
| MOQ | 50 - 100 pcs / model (negotiable) |
|---|---|
| Sample Lead Time | 7 - 10 days |
| Bulk Lead Time | 25 - 35 days after deposit |
| Export Packing | Anti-rust film + 5-ply export carton, palletised |
| Brand Cross-Reference | Comparable to Bondioli & Pavesi S4, Comer T40, Walterscheid W2400 |
| Order Code | EXP-PTO-T4-[length]-[tractor yoke]-[implement yoke] |
Not sure which yoke or length you need? Send a photo of your old shaft via the inquiry form — we will match it exactly.
Typical Applications:
- Rotary Tillers
- Standard Rotary Cutters
- Bale Wrappers
- Post-hole Diggers (Heavy)
