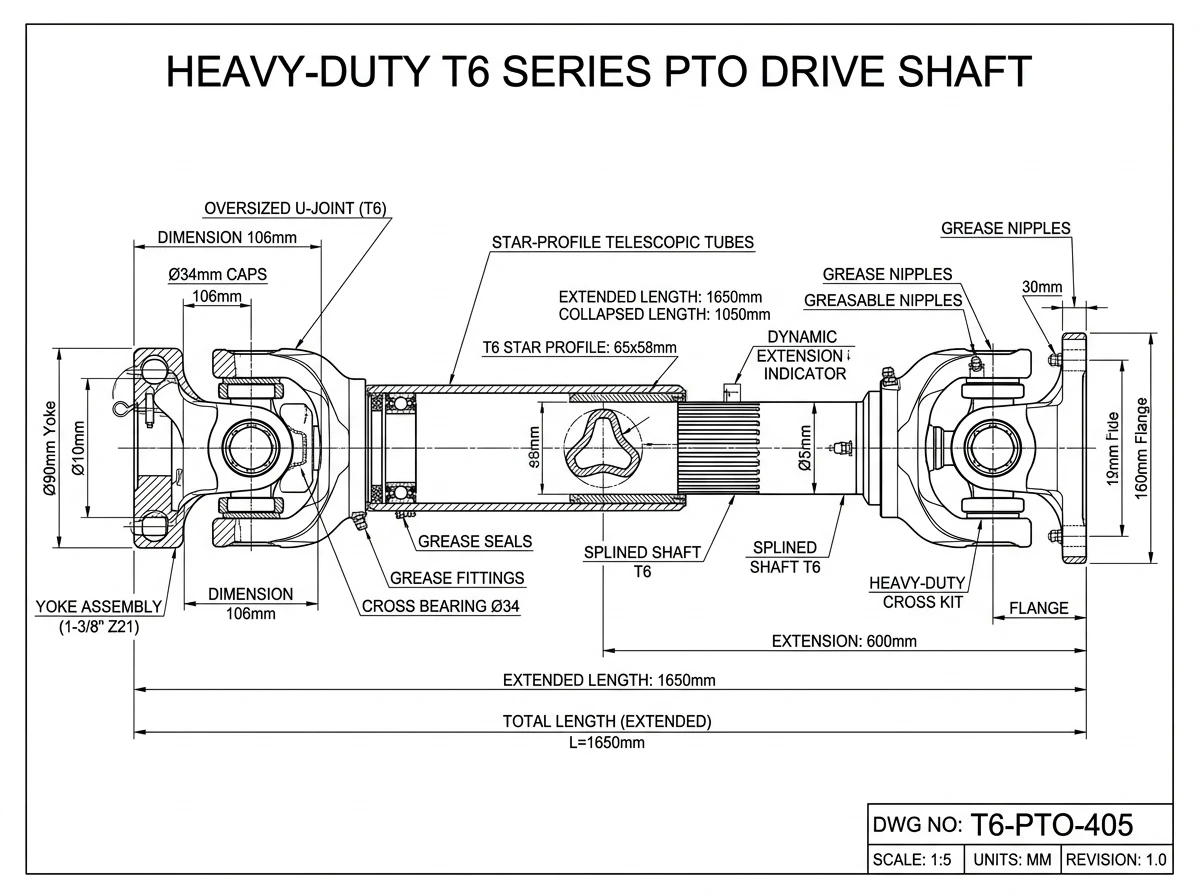

Technical Drawing (T6 Series)
Series: T6
High-Torque Performance
The T6 series is built for demanding environments. Featuring oversized universal joints and heavy-wall telescopic tubes, it provides the torque capacity required for large balers, mixers, and industrial drivetrain solutions.
| Power Rating (540 rpm) | 64 HP (47 kW) |
|---|---|
| Dynamic Torque | 830 Nm |
| Cross Journal (kit) | 30.2 x 92.0 mm |
| Tube Profile | Lemon / Star profile |
| Closed Length | 710 - 1310 mm (made to order) |
| Working Stroke | + up to 60% stroke |
| Tractor-Side Yoke | 1-3/8" Z21 / 1-3/4" Z20 quick-release |
| Implement-Side Yoke | 1-3/8" Z6 plain bore, shear-bolt or friction yoke |
| Standard Lengths | 1010 / 1210 / 1410 / 1610 mm |
| Safety Guard | CE-approved plastic safety guard (cone + base + bearing) |
Ordering & Trade Information
| MOQ | 50 - 100 pcs / model (negotiable) |
|---|---|
| Sample Lead Time | 7 - 10 days |
| Bulk Lead Time | 25 - 35 days after deposit |
| Export Packing | Anti-rust film + 5-ply export carton, palletised |
| Brand Cross-Reference | Comparable to Bondioli & Pavesi S6, Comer T60, Walterscheid W2600 |
| Order Code | EXP-PTO-T6-[length]-[tractor yoke]-[implement yoke] |
Not sure which yoke or length you need? Send a photo of your old shaft via the inquiry form — we will match it exactly.
Typical Applications:
- Heavy-Duty Round Balers
- TMR Feed Mixers
- Stump Grinders
- Large Snow Blowers
